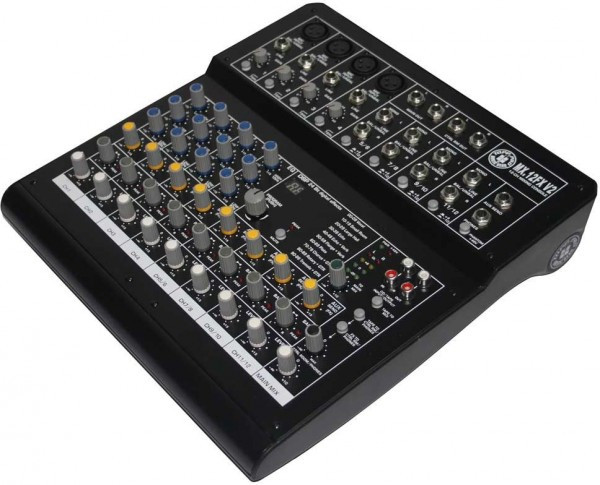

Микшерный пульт TOPP PRO MX.12 FX V2

Купить Микшерный пульт TOPP PRO MX.12 FX V2

TOPP PRO MX.12 FX V2 компактный микшер 12 CH; 2 Bus mixing console; 4 mono; 4 stereo; 3 band EQ; Gain control; 48V phantom power, DSP 16 presets

44714

Нет в наличии

9 490 ₽

Добавить к сравнению

Способ доставки

Курьер

Рассчитываем стоимость доставки...

Курьерская служба СДЭК

Рассчитываем стоимость доставки...

Пункты самовывоза СДЭК

Рассчитываем стоимость доставки...

Перечисленные способы доставки не подходят

Рассчитываем стоимость доставки...

Почта России

Рассчитываем стоимость доставки...

Model

MX.12FX V2

Frequency Response

Mic Input to any Output
(Gain @ 0 dB, Rated output level)

20 Hz to 50 kHz(0, -1dB)
20 Hz to 130 kHz(0, -3dB)

Distortion (THD&N)

Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth)

0.003%(A-weighted)

MIC EIN (Equivalent Input Noise)

Input: Channel INPUT MIC
(Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth)

119dBu (A-weighted)

Input Gain Control Range (20 Hz-20 kHz bandwidth)

Mono Channel	MIC: 0 to 48dB, LINE: -33 to +15dB
Stereo Channel	LINE: -8 to +6dB

Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth)

Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity
Main Mix knob/fader @ -8	-87dBu(A-weighted)
Channel Level knob/fader @ -8	-85dBu(A-weighted)

Rated Output Level

Main, Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz)

0dBu

Maximum Output Level

Main, Aux, Control Room output(all knob/fader
@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%)

+20dBu

Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm)

Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced)	74dBu
Mono Channel MIC INPUTPHONES (1/4" TRS Stereo)	84dBu
Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced)	79dBu
Mono Channel MIC INPUT TAPE OUT (RCA)	74dBu
Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced)	59dBu
Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced)	33dBu
TAPE INPUT MAIN OUT (1/4" TRS Unbalanced)	10dBu

Main mix Noise (20 Hz-20 kHz bandwidth)

MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity)
Main Mix knob/fader @ -8	-106dBu (A-weighted)
Channel Level knob/fader @ -8
Main Mix knob/fader @ 0dB	-95dBu (A-weighted)
Channel Level knob/fader @ -
Main Mix knob/fader @ 0dB	-93dBu (A-weighted)
Channel Level knob/fader @ 0dB

Input HPF

Channel 1-4	75Hz, 18 dB/oct

Equalization (Mono channels)

High	+/-15 dB @12 kHz
Mid	+/-12 dB @2.5 kHz
Low	+/-15 dB @80 Hz

Internal Digital Effect

Presets	100
Controls	100-Position PRESET Selector and Mute Switch
Display	Two 7-segment display and Mute/Peak LED Indicator
Type of effects	VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR

PEAK Indicator

Channel 1-12	+17dBu
Digital Effect(AUX send)	+11dBu
VU Meters	+20dBu

VU Meters

Main Left and Right (4-segment)	Clip (+20), +6, 0, -20 (0 LED=0 dBu)

Impedance

Microphone Input	2.6k Ohms
Line Input	10k Ohms
CD/Tape Input	22k Ohms
Main Outputs	120 Ohms
Ctrl Room, Aux Sends	120 Ohms
Tape Output	1K Ohms
Phones Outputs	25 Ohms

Phantom power

Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD)	+48V

Power supply

Adaptor

AC 18V, 1000mA

Power Consumption

18W

Physical

Dimension (LWH)	27125954.3mm
Weight	Net:1.9kg

TOPP PRO MX.12 FX V2 компактный микшер 12 CH; 2 Bus mixing console; 4 mono; 4 stereo; 3 band EQ; Gai

Вид звукового оборудования	микшерный пульт
Модель	TOPP PRO MX.12 FX V2
Габариты в упаковке	0,125х0,35х0,43 см
Бренд	TOPP PRO
Страна	Китай
Основной цвет	черный
Вес в упаковке	3.7625 кг
К-во каналов (звуковая схема)	12
Встроенное усиление	пассивный
